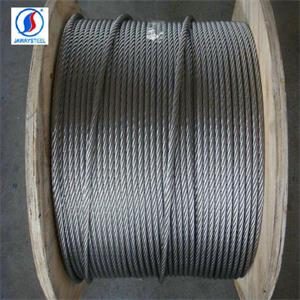

316 Stainless Steel Wire Rope
What is 316 stainless steel?
Due to the addition of Mo, the 18cr-12ni-2.5 Mo has excellent corrosion resistance, atmospheric corrosion resistance and high temperature strength, which can be used under harsh conditions.Excellent work hardenability (no magnetism).Equipment used in seawater, chemistry, dyestuff, paper making, oxalic acid, fertilizer and other production equipment;Photo, food industry, coastal facilities, ropes, CD rods, bolts, nuts.
Chemical composition of 316 stainless steel
C≤0.08% Si≤1.00% Mn≤2.00% P≤0.035% S≤0.03% Ni:10.0%-14.0% Cr:16.0%-18.5% Mo:2.0%-3.0%
Mechanical property
Ensile strength (Mpa): 620 MIN
Yield strength(Mpa): 310 MIN
Elongation(%): 30 MIN
Area shrank(%): 40 MIN
Specification
6×19、7×19、1×7、1×19、6×7、7×7、6×37、7×37 etc, which is more expensive than stainless steel screw thread, stainless steel spring line, stainless steel bar, stainless steel tube and stainless steel plate of the same material. The most expensive is 7*7 strands.
Characteristic：
A.High size accuracy, reaching + / - 0.01mm;
B.Good surface quality and good brightness;
C.Strong corrosion resistance, high tensile strength and fatigue strength;
D.Stable chemical composition, pure steel and low inclusion content;
Application：Stainless steel wire has good high temperature resistance, fatigue resistance, breaking force, long service life, durable and other characteristics, widely used in coal, petroleum, metallurgy, chemical industry, shipbuilding, Bridges, electricity, rubber, war industry, tourism, water conservancy, light industry and other industries, products can be according to ISO, BS, DIN, JIS, ABS, LR and other international standards and foreign advanced level production.
1.In the equipment reform of chemical industry, chemical fertilizer, chemical fiber and so on, the stainless steel wire rope is used in the equipment arrangement.
2.stainless steel welding rods and a large number of stainless steel components, springs, contiguous parts, etc. are used in stainless steel wire ropes.
3.On electrified locomotives, the hanger and hanger on the power line, these are the application areas of stainless steel wire rope.
4. The nylon nets used in various industries are now replaced by stainless steel wire ropes.
5. railway electrification, decoration industry, rigging industry, fishing gear industry, automobile industry and other industries.
If you want to know more about the 316 stainless steel wire rope and the price, please contact us at 809@jawaysteel.com.
